A3 UV DTF Printer
Desktop UV Flatbed Printer Features：
- Model: SE A3
- Print Width: A3, 14 x 8.5 inches, 297 x 420 mm
- Print Head: i3200U1 HD x 1
- Number of print heads: 1
- Print size: A3 (297mm×420mm)
- Printing height: 90mm
- Output color: CMYK+W /CMYK+W +V(different prices)
- Print quality: 720dpi, 1440dpi, 2880dpi, 5760dpi
- Inkjet technology: intelligent droplet changing
- Positioning system: Visual positioning (purchased separatedly)
- Curing system: LED UV curing, etc

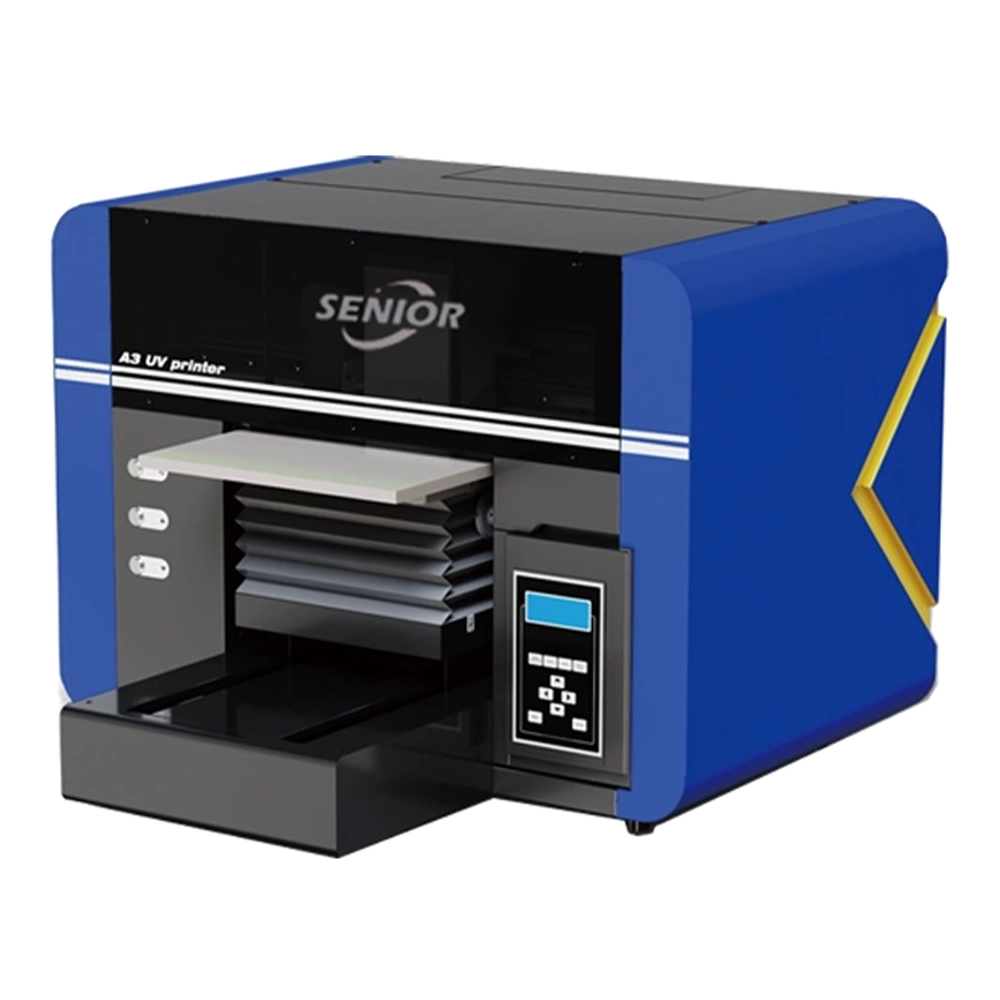

Senior Desktop UV Flatbed Printer
The Senior Desktop UV Flatbed Printer delivers precise and efficient printing in a compact design. It supports a print width of A3 (14 × 8.5 inches, 297 × 420 mm) and features a high-definition EPSON XP600 / i3200U1 printhead. This lightweight and portable printer saves space and is easy to move.
It includes fully automatic infrared altimetry for precise height adjustment and a suction platform with smart automatic lifting. The printer offers automatic nozzle cleaning, circular white ink stirring, and timed flash spray for consistent performance. Users can choose between one-way and two-way printing modes.
The printer uses an AirTAC guide rail with a high-precision transmission wheel and an electric lifting ink stack with automatic moisturizing. It also features an anti-collision sensor and an ink shortage alarm for reliable operation. Senior ensures this desktop UV flatbed printer delivers accuracy, convenience, and smooth workflow for various printing applications.
Features: Senior SE-A3 Product Highlights
- Small size and lightweight, easy to carry and saves space
- Fully automatic infrared altimetry
- Suction platform with intelligent automatic platform lifting
- Automatic nozzle cleaning with circular white ink stirring and timed flash spray
- Supports one-way/two-way printing mode
- AirTAC guide rail with high-precision transmission wheel
- Electric lifting ink stack with automatic moisturizing
- Anti-collision sensor and ink shortage alarm
3D Printing
Supports 3D hot stamping and multi-layer effects. The simultaneous printing of CMYKW and varnish creates embossing and transparent layered embossing effects. The printer also handles hot stamping applications.

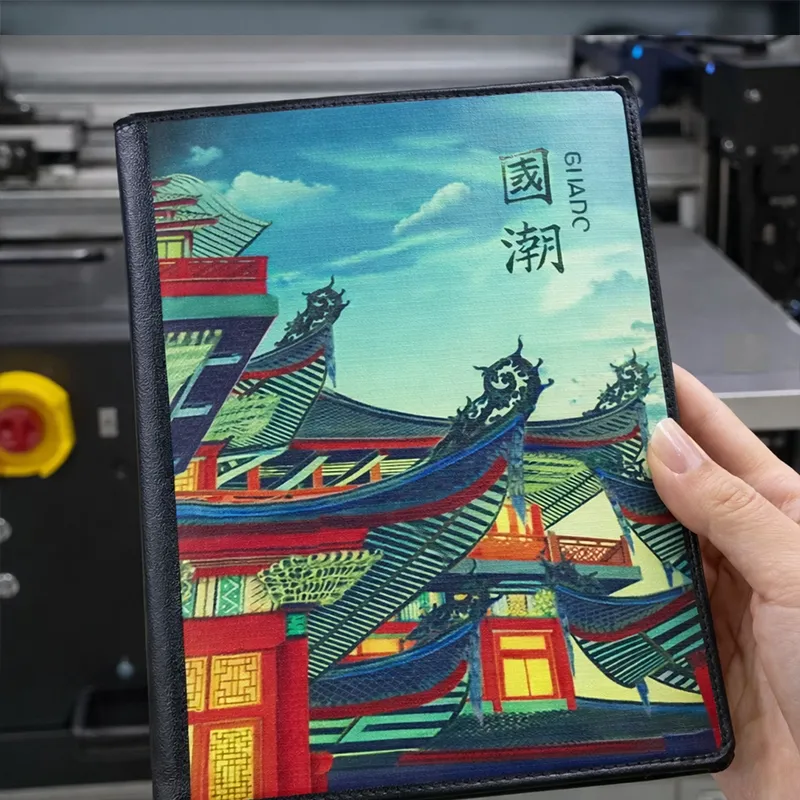

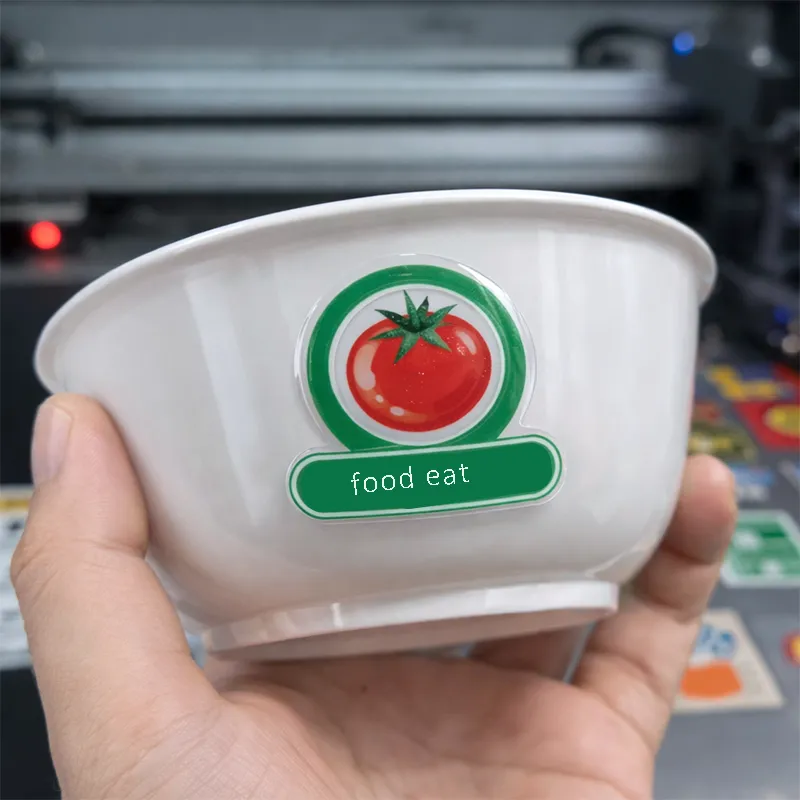

UV DTF Sticker
The printer supports optional coil materials for UV DTF crystal label printing. It works on more than just flat surfaces, making it a true multi-purpose machine.
Cylindrical A3 UV Printer
Optional cylindrical clamping fixture available

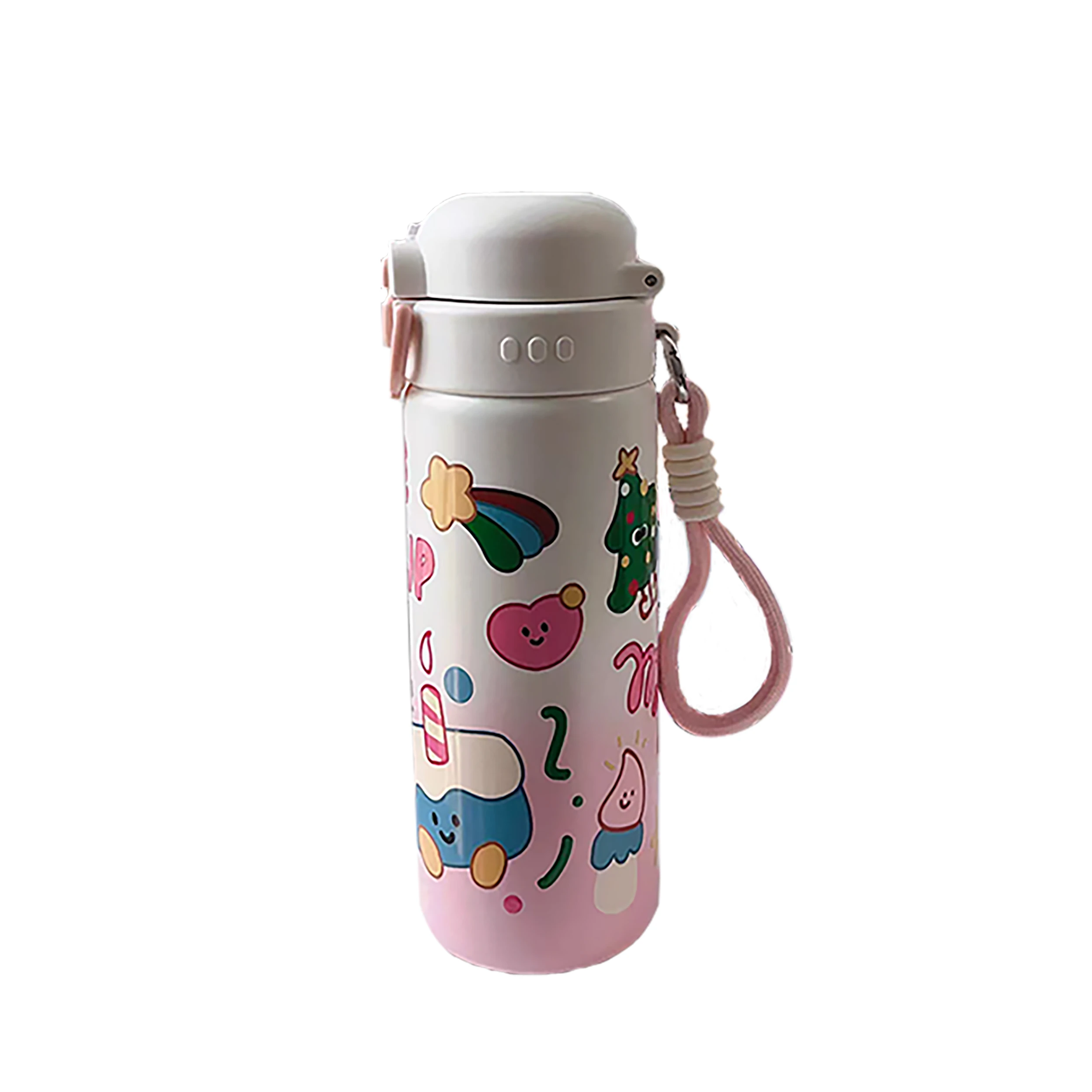

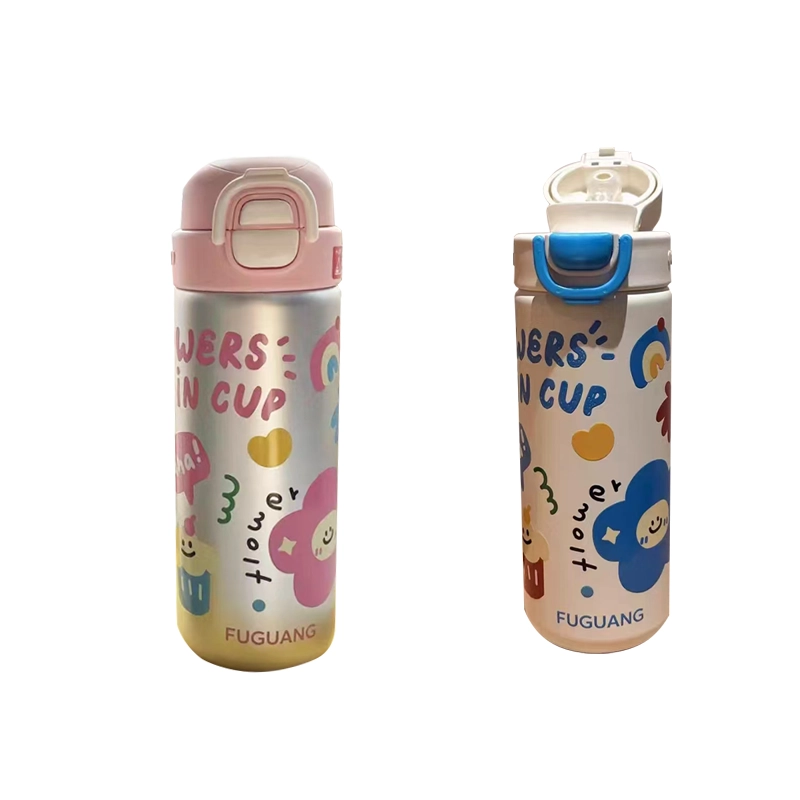

When fitted with the fixture, this printer can handle cylindrical objects ranging from 30 to 120 millimeters in diameter, including thermos flasks and mugs.
Visual Positioning (Select Configuration)
The printer can include a visual positioning feature. It scans objects automatically and prints with precise alignment, eliminating the need for manual positioning.
A3 UV DTF Printer Specifications
| A3 | |||
| Model | A3 | Print head | 3200HD |
| Main board | Hansen board card | Print size | A3 (297mm×420mm) |
| Printing height | 90mm | Output color | CMYK+W /CMYK+W +V(different prices) |
| Print quality | 720dpi, 1440dpi, 2880dpi, 5760dpi | Lifting function | platform lifting |
| Number of print heads | 1 | Inkjet technology | intelligent droplet changing |
| Positioning system | Visual positioning (purchased separatedly) | Spray head heating | supported |
| Anti clogging of nozzle | automatic mixing /flash spraying | Print head maintenance | automatic cleaning |
| Printing platform | suction platform | Printing mode | Unidirectional / bidirectional |
| Transmission system | high precision screw+guide rail | Ink supply system | automatic ink supply |
| Ink path system | lifting ink stack /open mold ink cartridge | Ink level monitoring | ink shortage alarm |
| Curing system | LED UV curing, etc | Height measurement | Fullly automatic laser altimetry |
| Interface method | Gigabit fiber optic | IPower | AC220/110 50HZ~60HZ |
| File formats | ttf, bmp, pdf, eps, ipg, etc | Output software | professional software |
| Operating system | Win 7/8/10, etc | Special Effect | Relief |
| Working environment | Temperature 15 ℃ to 35℃ Humidity 20% to 30% |
Cylinder | supports printing |
| Cylindrical fixture | optional | Weight | about 52kg size: 75×75.5×56.3cm |
a3 uv printer highlights
- Hot stamping and 3D are all available
- Electric actuator, supporting cylindrical UV rotary printing
- UV DTF Sticker
- Visual Positioning
Epson i3200 - A1 Print Head
Sublimation Printer SE-3215TX+ Sublimation Printer using Epson i3200 print heads. Epson i3200 head has 3200 nozzles, a resolution of 600dpi, jetting frequency is higher than DX5 and xp600, and also color saturation, printing speed, and printing accuracy are better, and the price is cheap, Very cost-effective.
| Model | i 3200 – A1 |
| Ink Types | Water based ink |
| Size(width×depth×height)mm | 69.1×59.4×35.6 |
| Weight(g) | 82 |
| Nozzle Numbers | 3200 |
| Nozzle pitch/nozzle row | 1/300 inch (in one row) |
| Nozzle Row | 8 rows |
| Max color/head | 4colors |
| Nozzle Resolution | 300pi/1 row 600npi/2row |
| Effective Printing Wdith(mm) | 33.8mm(1.33 inches) |
| Jet Frequency(kHz) | 43.2(single dot), 21.6(multi dot) |
| Innk Drops(pI) | 3.8, 6, 12(9.4) |
| Ink Viscosity (m Pa.s) | 3~4 |
