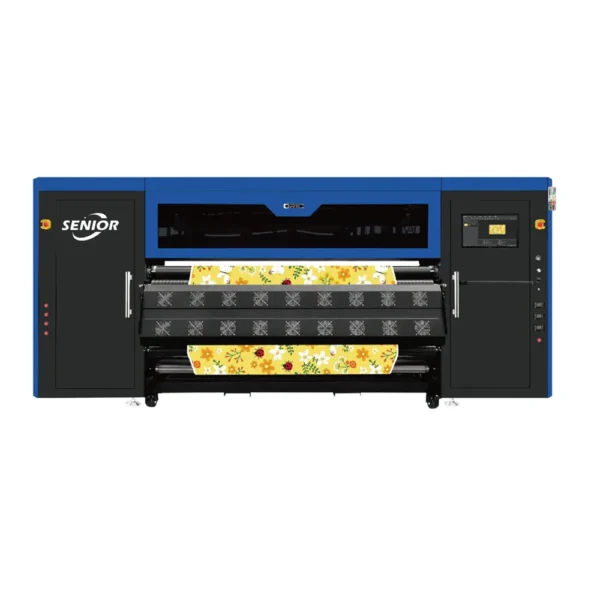

Industrial High Speed Digital Sublimatin Printer
Key Featurs：
Model: SE-2224TX
Print Head Type: i3200 A1
Print Head number: 24pcs
Carryable materials: 10000M
Material specifications: ≥30g
Printing wide width: 2200 mm
Ink Color: CMYK
Ink supply method: Negative pressure Ink
Print Ink Size: 3.5pI
Widely used:
household goods, clothing, masks, T-shirt printing, canvas bags, cushions, luggage products, flags, curtains, doors and Windows, sofa table MATS,umbrella tents and other textile fabrics.
This sublimation printer uses advanced board control technology and comes with 24, 30, or 36 i3200-A1 print heads. It delivers precise 3.5 pI ink droplets for sharp, vibrant results. The industrial-grade design guarantees the durability of the print heads, making it one of the best sublimation printers for heavy use.
The printer supports automated production with a high-strength industrial structure. It can handle a full roll of 10,000 meters of base paper, enabling uninterrupted sublimation printing. The unattended production system boosts productivity and saves time.
The device features a place-and-receive system that carries the entire 10,000-meter roll smoothly. High-quality, stable components enhance print reliability and ensure continuous high-quality output. The air channel honeycomb platform feeds paper evenly to prevent drum marks. It also makes platform calibration and adjustments easier.
The thickened wall panel supports long-term, high-speed operation and can carry heavier rewinding materials. The front bottom and back drying sections work together to improve drying efficiency. This design makes loading and unloading materials faster and more convenient, perfect for mass production needs.
High-precision printing produces fine patterns with natural color transitions, delivering realistic images every time. This sublimation printer meets the demands of mass production, reduces loading time, and improves overall production efficiency.
Technical Specifications – SE2224TX/2236TX – Digital Sublimation Printer
| Model | SE-2224TX | SE-2236TX |
| Print Head Type | i3200 A1 | |
| Print Head number | 24 | 36 |
| Print Ink Size | 3.5pI | |
| Ink Kind | High-concentration heat transfer ink | |
| Ink Color | CMYK | |
| Ink supply method | Negative pressure Ink | |
| Ink Capacity | 12L | |
| Machine width | 2250 mm | |
| Print width | 2200 mm | |
| X-axis transmission | Maglev | |
| Receiving and discharge structure | Pinch roller /Swing link | |
| Carryable materials | 10000M | |
| Material specifications | ≥30g | |
| Drying structure | External multi-stage automatic control wind and heat all-in -one dryer | |
| Miosturizing structure | Fully automatic cleaning and moisurizing components | |
| RIP | Riin | |
| Operating system | Win7 64-bit / Win 10 64-bit | |
| Hardware requirements | Hard disk: 500G Above (SSD is recommended); Running more than 8G memory; graphics card: ATI discrete graphics 4G memory; CPU: i7 processor | |
| Interface | LAN | |
| Power input voltage | AC220V ±5%,16A,50Hz, Printing system: 7000w, Drying system: Maximum power: 20kw | |
| Standard assembly | Intelligent drying system, continuous ink supply system, ten thousand meters of unwinding negative pressure device, magnetic suspension motor module, etc. | |
| Working environment | Temperature: 20℃-32℃， Relative humidity: 40%-65% (No condensation) | |
| Machine size/ Weight | 4590×3060×2050mm/2100kg | |
| Pachage size/Weight | machine: 4790×1300×2050mm/2000kg | 10000 meters of retraction: 2700×1140×1200mm/450kg |
Epson i3200 - A1 Print Head
Sublimation Printer SE-3215TX+ Sublimation Printer using Epson i3200 print heads. Epson i3200 head has 3200 nozzles, a resolution of 600dpi, jetting frequency is higher than DX5 and xp600, and also color saturation, printing speed, and printing accuracy are better, and the price is cheap, Very cost-effective.
| Model | i 3200 – A1 |
| Ink Types | Water based ink |
| Size(width×depth×height)mm | 69.1×59.4×35.6 |
| Weight(g) | 82 |
| Nozzle Numbers | 3200 |
| Nozzle pitch/nozzle row | 1/300 inch (in one row) |
| Nozzle Row | 8 rows |
| Max color/head | 4colors |
| Nozzle Resolution | 300pi/1 row 600npi/2row |
| Effective Printing Wdith(mm) | 33.8mm(1.33 inches) |
| Jet Frequency(kHz) | 43.2(single dot), 21.6(multi dot) |
| Innk Drops(pI) | 3.8, 6, 12(9.4) |
| Ink Viscosity (m Pa.s) | 3~4 |
