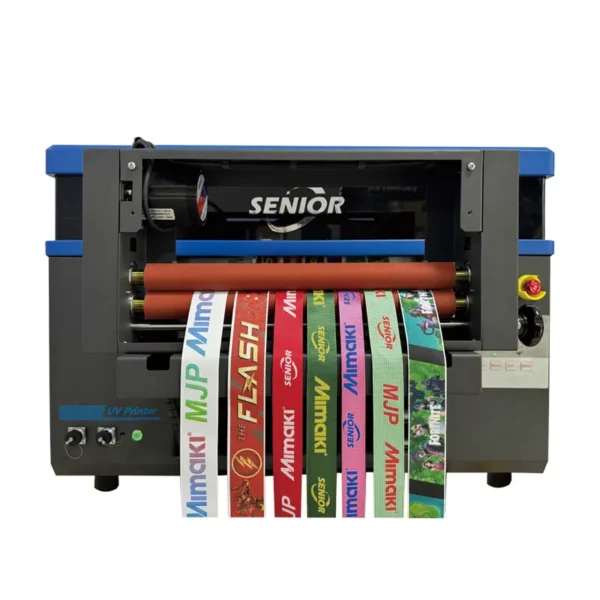

3010 Ribbon printer
Key Features：
- Model: 3010 Ribbon Printer
- Print size: 30cm
- Printing height: 0~150mm
- Printing length (in meters): 3-10m
- Nozzles configuration: Imported Epson high-speed print head
- Number of nozzles: 2
- Print quality: 720dpi, 1440dpi, 2880dpi, 5760dpi
- Printing technology: Variable Droplet Technology
- Printing Speed: 6 pass/8pass
- Inkjet technology : Micro-piezoelectric inkjet
- Height Adjustment: Manual adjustment
Warranty: 1 Years
Internation shipping: DHL, FedEx, By Air, By Sea
The 3010 Ribbon Printer offers fully automated printing, film peeling, film pressing, and collection. This Ribbon Printer Machine supports dual-use operation. Assembly and disassembly are quick. It prints on rolls and delivers high-quality uv dtf prints on Ribbon,T-shirts, sliding doors, cabinet doors, gates, glass, panels, nameplates, PVC, acrylic, metal, plastic, stone, and leather. Printing completes in one step with no plate-marking. Colors stay rich and vibrant. The prints resist abrasion and UV rays. Operation is simple. Printing speed is fast. This UV DTF Printer provides a strong solution for versatile production.
Technical Specifications – 3010 Ribbon Printer
| 3010 Ribbon Printer | |||
| Model | 3010 | Name | Webbing printer |
| Nozzles configuration | Imported Epson high-speed print head | Print size | 30cm |
| Output Color | CMYK+W | Printing height | 0~150mm |
| Print quality | 720dpi, 1440dpi, 2880dpi, 5760dpi | Number of nozzles | 2 |
| Anti-freezing system | Can be added to purchase optionally | Printing technology | Variable Droplet Technology |
| Print head-anti clogging | Flash spraying for anti-clogging and automatic stirring | Printing deviati on corrrection | Support |
| Clean the print head | Auto/manual cleaning | Printing platform | high-load-bearing suction platform |
| Lifting function | Platform lifting | printing direction | Unidirectional / bidirectional |
| Height Adjustment | Manual adjustment | ||
| Inkjet technology | Micro-piezoelectric inkjet | Ink level detection | Multi-channel real-time ink shortage alarm |
| Printing length (in meters) | 3-10m | Ink type | Ribbon ink |
| Printing Speed | 6 pass/8pass | Guide rail | Imported linear guide rail |
| Power system | high-precision servo motor | Transmission mode | XY axis guide rail+motor |
| Print output software | Ruiyin/Montage | Auto mode | Fully automatic repetitive continuous printing |
| Ink supply method | Fully automatic ink supply | Curing method | Ultraviolet, photo curing, dry immediately after printing |
| Data transmission | high-speed USB or Gigabit Ethernet card | Dynamic print | Automatically change the coding/name/date,etc.(Optional) |
| Power requirements | AC220/110V 50HZ~ 60HZ | Operating envionment | Temperature 15 ℃ to 35℃ Humidity 20% to 30% |
| File formats | jpg, png, pdf, tif, eps, etc | Operating System | Win 7/8/10 |
| Equipment weight | About 90kg | Machine Dimensions | 92.8×103.6×63 |
| Printing materials: cotton, linen, polyester, chemical fiber ,nylon, etc. | |||
Epson i3200 - A1 Print Head
Sublimation Printer SE-3215TX+ Sublimation Printer using Epson i3200 print heads. Epson i3200 head has 3200 nozzles, a resolution of 600dpi, jetting frequency is higher than DX5 and xp600, and also color saturation, printing speed, and printing accuracy are better, and the price is cheap, Very cost-effective.
| Model | i 3200 – A1 |
| Ink Types | Water based ink |
| Size(width×depth×height)mm | 69.1×59.4×35.6 |
| Weight(g) | 82 |
| Nozzle Numbers | 3200 |
| Nozzle pitch/nozzle row | 1/300 inch (in one row) |
| Nozzle Row | 8 rows |
| Max color/head | 4colors |
| Nozzle Resolution | 300pi/1 row 600npi/2row |
| Effective Printing Wdith(mm) | 33.8mm(1.33 inches) |
| Jet Frequency(kHz) | 43.2(single dot), 21.6(multi dot) |
| Innk Drops(pI) | 3.8, 6, 12(9.4) |
| Ink Viscosity (m Pa.s) | 3~4 |
