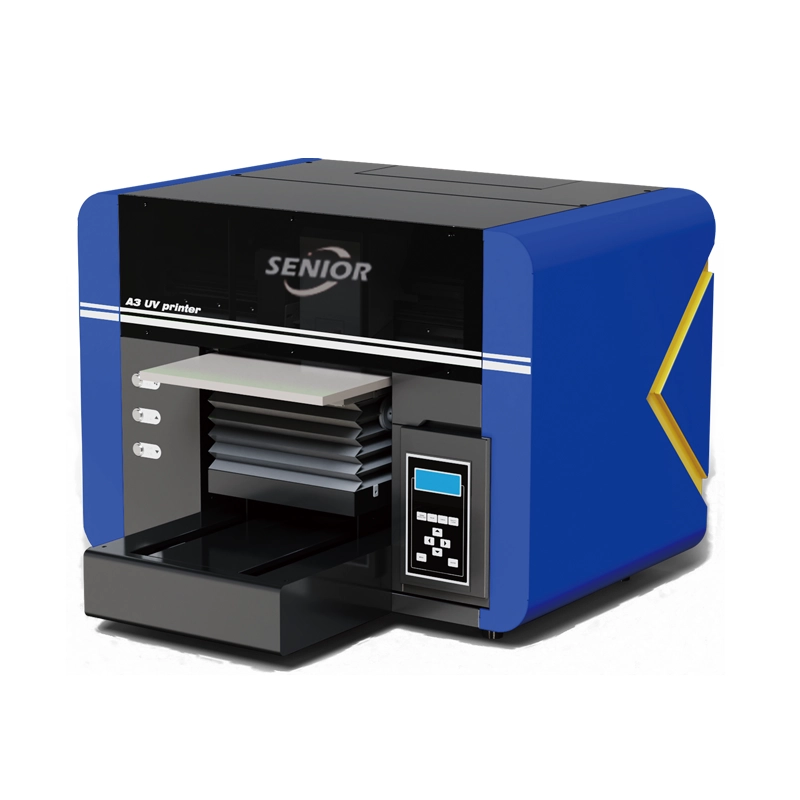

A3 (290mm) UV Flatbed Printer
Desktop UV Flatbed Printer Description:
- Print Width: A3 (297mm×420mm) （ 14 x 8.5 inches）
- Print Head: EPSON i3200U1 HD x 1
- Printing height： 90mm
Features:
- Small size and lightweight, easy to carry and saves space
- Fully automatic infrared altimetry
- Suction platform with intelligent automatic platform lifting
- Automatic nozzle cleaning with circular white ink stirring and timed flash spray
- Supports one-way/two-way printing mode
- AirTAC guide rail with high-precision transmission wheel
- Electric lifting ink stack with automatic moisturizing
- Anti-collision sensor and ink shortage alarm
Warranty: 1 Years
Internation shipping: DHL, FedEx, By Air, By Sea
Senior SE-A3 Product Highlights
3D Printing
Supports 3D hot stamping and multi-layer effects. The simultaneous printing of CMYKW and varnish creates embossing and transparent layered embossing effects. The printer also handles hot stamping applications.
Electric Fixture with 360° Rotation Printing
Equipped with a fixture, the printer can handle cylindrical objects with diameters from 30 to 120mm, including thermos cups and mugs.
UV DTF Sticker
The printer supports optional coil materials for UV DTF crystal label printing. It works on more than just flat surfaces, making it a true multi-purpose machine.
Visual Positioning
The printer can include a visual positioning feature. It scans objects automatically and prints with precise alignment, eliminating the need for manual positioning.
Specification for SE-A3 UV DTF Printer
| A3 | |||
| Model | A3 | Print head | 3200HD |
| Main board | Hansen board card | Print size | A3 (297mm×420mm) |
| Printing height | 90mm | Output color | CMYK+W /CMYK+W +V(different prices) |
| Print quality | 720dpi, 1440dpi, 2880dpi, 5760dpi | Lifting function | platform lifting |
| Number of print heads | 1 | Inkjet technology | intelligent droplet changing |
| Positioning system | Visual positioning (purchased separatedly) | Spray head heating | supported |
| Anti clogging of nozzle | automatic mixing /flash spraying | Print head maintenance | automatic cleaning |
| Printing platform | suction platform | Printing mode | Unidirectional / bidirectional |
| Transmission system | high precision screw+guide rail | Ink supply system | automatic ink supply |
| Ink path system | lifting ink stack /open mold ink cartridge | Ink level monitoring | ink shortage alarm |
| Curing system | LED UV curing, etc | Height measurement | Fullly automatic laser altimetry |
| Interface method | Gigabit fiber optic | IPower | AC220/110 50HZ~60HZ |
| File formats | ttf, bmp, pdf, eps, ipg, etc | Output software | professional software |
| Operating system | Win 7/8/10, etc | Special Effect | Relief |
| Working environment | Temperature 15 ℃ to 35℃ Humidity 20% to 30% |
Cylinder | supports printing |
| Cylindrical fixture | optional | Weight | about 52kg size: 75×75.5×56.3cm |
Epson i3200 - A1 Print Head
Sublimation Printer SE-3215TX+ Sublimation Printer using Epson i3200 print heads. Epson i3200 head has 3200 nozzles, a resolution of 600dpi, jetting frequency is higher than DX5 and xp600, and also color saturation, printing speed, and printing accuracy are better, and the price is cheap, Very cost-effective.
| Model | i 3200 – A1 |
| Ink Types | Water based ink |
| Size(width×depth×height)mm | 69.1×59.4×35.6 |
| Weight(g) | 82 |
| Nozzle Numbers | 3200 |
| Nozzle pitch/nozzle row | 1/300 inch (in one row) |
| Nozzle Row | 8 rows |
| Max color/head | 4colors |
| Nozzle Resolution | 300pi/1 row 600npi/2row |
| Effective Printing Wdith(mm) | 33.8mm(1.33 inches) |
| Jet Frequency(kHz) | 43.2(single dot), 21.6(multi dot) |
| Innk Drops(pI) | 3.8, 6, 12(9.4) |
| Ink Viscosity (m Pa.s) | 3~4 |
