Introduction

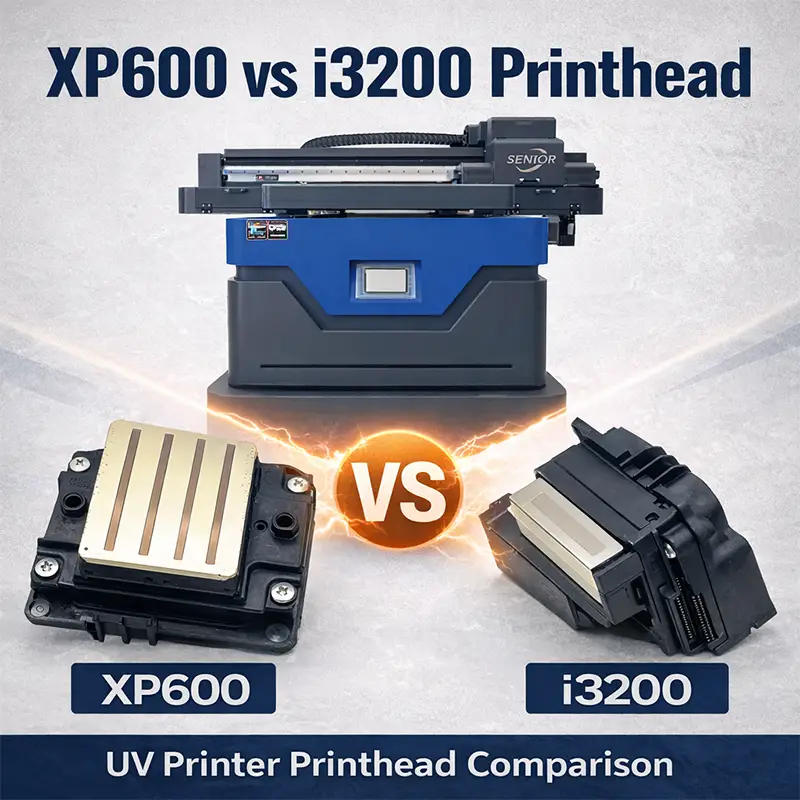

XP600 vs i3200 Printhead: What Is the Difference?
XP600 and i3200 are two popular Epson printheads used in UV printers.
The XP600 printhead is usually used in small UV printers because of its lower cost.
The i3200 printhead has more nozzles and a higher printing speed, making it suitable for commercial production.
Key differences include:
- i3200 has 3200 nozzles, while XP600 has 1080 nozzles
- i3200 printing speed is about 15–20% faster
- XP600 printers usually cost less
- i3200 is more suitable for industrial printing
In the UV printing industry, the printhead plays a key role in print quality, speed, and machine stability. Many buyers ask the same question before purchasing a UV printer: XP600 vs i3200 printhead — which one is better?
Both XP600 and i3200 are Epson piezoelectric printheads widely used in A3 UV printers, UV6090 flatbed printers, and UV DTF printers. However, they are very different in price, speed, structure, and application.
In this article, we will compare the XP600 vs. the i3200 printhead in terms of print quality, speed, cost, technology, and applications. This guide helps B2B buyers choose the right UV printer configuration.
What Are XP600 and i3200 Printheads?
Both XP600 and i3200 are Epson piezoelectric printheads widely used in UV printing equipment.
You can find these printheads in machines such as:
- A3 UV flatbed printers
- UV6090 printers
- UV DTF printers
- Desktop UV printers
However, they target different markets.
XP600 is usually considered an entry-level printhead, while i3200 is designed for industrial printing applications.
XP600 Printhead Overview
The XP600 printhead is commonly used in small and medium UV printers. Because of its affordable price and good performance, it is widely used in desktop UV printing machines.
Key features include:
- Low cost
- Wide compatibility
- High printing resolution
- Ideal for compact UV printers
XP600 specifications:
- 6 ink channels
- 180 nozzles per channel
- 1080 nozzles in total
- Droplet size: 3.5PL
- Max resolution: 2880 dpi
i3200 Printhead Overview
The i3200 printhead is an industrial-grade Epson printhead designed for high-speed printing systems.
It uses PrecisionCore technology and MEMS manufacturing, which improves droplet control and printing stability.
Key specifications of the i3200 printhead:
- 3200 nozzles
- 2400 dpi resolution
- 600 npi / dual row structure
It also supports variable droplet technology, allowing smoother color transitions and better image detail.
XP600 vs i3200 Printhead Comparison
| Parameter | XP600 | i3200 |
|---|---|---|
| Nozzles | 1080 | 3200 |
| Droplet size | 3.5PL | Variable |
| Max resolution | 2880 dpi | 2400 dpi |
| Technology | L1440 MACH | PrecisionCore + MEMS |
| Speed | Medium | High |
| Applications | A3 UV printers | Industrial UV printers |
XP600 vs i3200 Printhead Speed
When it comes to printing speed, the i3200 printhead is noticeably faster.
In most UV printing systems, the i3200 can print 15%–20% faster than XP600.
XP600 is ideal for:
- Small custom printing jobs
- Personalized products
- Startup businesses
i3200 is better for:
- Mass production
- Commercial printing
- Industrial UV printers
XP600 vs i3200 Preathead Cost Comparison
Cost is another important factor when choosing a UV printer.
The XP600 printhead price is about:
2400 RMB per unit
Most machines use two printheads:
Total cost about 4800 RMB
The i3200 printhead costs around:
7500 RMB per unit
With two printheads installed:
Total cost about 15000 RMB
XP600 vs i3200 Printhead Applications
XP600 is commonly used in:
- A3 UV printers
- Desktop UV printers
- Small customization machines
Typical applications include the following:
- Phone cases
- Acrylic signs
- Personalized gifts
The i3200 printhead is widely used in:
- UV6090 printers
- Industrial UV flatbed printers
- High-speed production machines
FAQ
Is i3200 better than XP600?
The i3200 printhead is generally faster and more stable than XP600. It is often used in industrial UV printers and production environments.
What is the difference between XP600 and i3200 printhead?
The main difference is nozzle count and printing speed.
XP600 has 1080 nozzles while i3200 has 3200 nozzles, which allows faster printing and smoother image quality.
Can XP600 be used for UV printers?
Yes. XP600 printheads are commonly used in A3 UV printers and small UV printing machines.
Why is i3200 more expensive?
The i3200 uses Epson PrecisionCore technology and MEMS manufacturing, which improves printing stability and speed.
Conclusion
Both printheads have their strengths.
XP600 is more affordable and perfect for startups and small customization businesses.
The i3200 printhead offers higher speed, better stability, and stronger production capacity, making it ideal for professional printing businesses.
