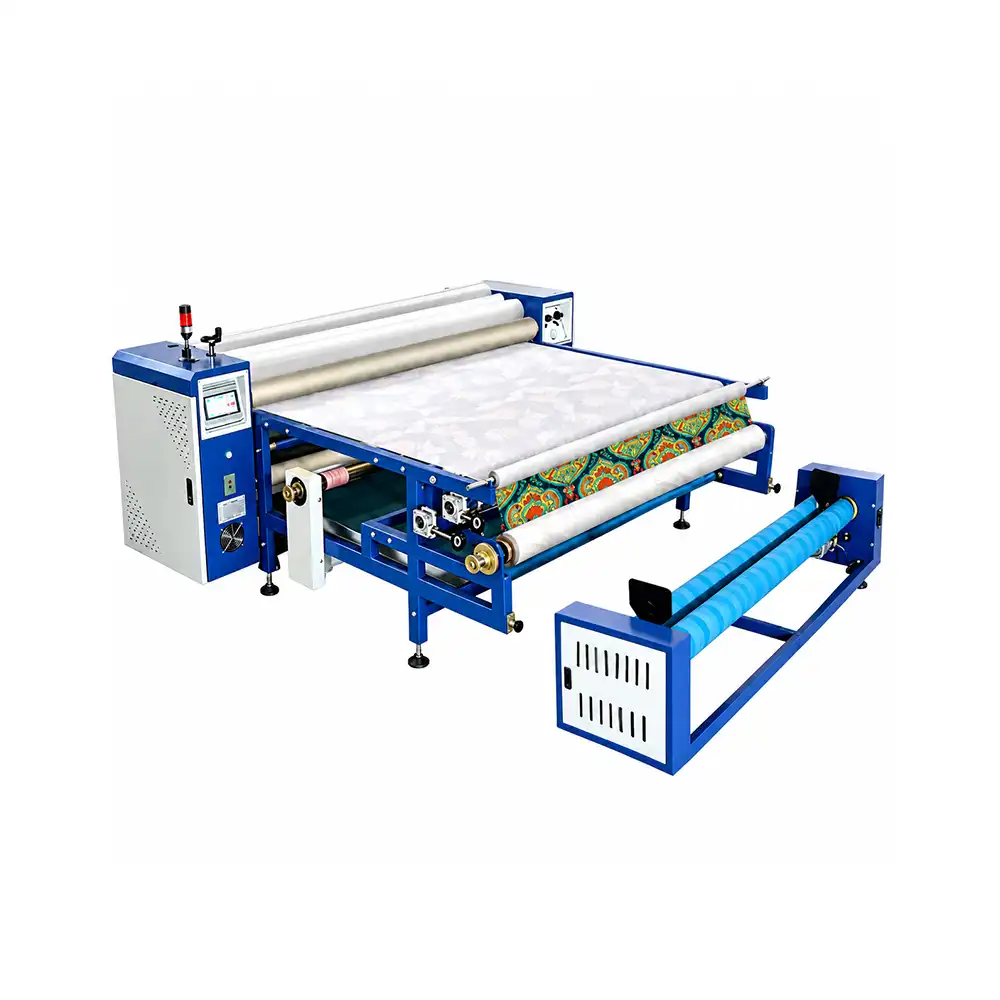

Rotary Heat Press Machine
Our rotary heat press machines are designed for continuous sublimation heat transfer on polyester fabrics and textiles. Available in compact, oil-filled, and roll-to-roll configurations, Series supports garment printing, home textiles, soft signage, and industrial fabric production.
Technical Highlights:
- Oil-filled drum heating for consistent temperature distribution
- Automatic blanket alignment on supported models
- Working temperature range: 210–240°C
- Drum diameters from 220 mm to 1,000 mm, depending on model
Top Features:
- Available in compact, standard, and roll-to-roll configurations
- Working widths up to 3.2 m, with selected custom options
- Suitable for polyester apparel, home textiles, curtains, and soft signage
Rotary Heat Press Machine Overview
Applications & Uses
Apparel, home textiles, soft signage, and industrial fabrics.
How It Works
Heated rotating drum, controlled pressure, and continuous heat transfer.
Who Is It For?
Garment manufacturers, sublimation printing factories, and home textile producers.
Key Features of Our Rotary Heat Press Machines
Uniform Drum Heating
Oil-filled drum heating ensures even heat distribution for consistent sublimation transfer results.
Automatic Blanket Alignment
Automatic blanket correction on supported models helps maintain stable operation and reduce manual adjustments.
Continuous Heat Transfer
Designed for continuous sublimation heat transfer on polyester fabrics, apparel, and home textiles.
Multiple Drum Sizes
Drum diameters from 220 mm to 1,000 mm support different production capacities and fabric applications.
Stable Temperature Control
Precise temperature control supports consistent heat transfer within a working range of 210–240°C.
Flexible Production Options
Available in compact, standard, and roll-to-roll configurations for different textile production needs.
Rotary Heat Press Machine Models
SE-01 Small PLC Drum Heat Transfer Machine
Drum Diameter: 220–320 mm
Working Width: 1.2–1.9 m
Temperature Range: 210–240°C
Applications: Apparel and home textiles

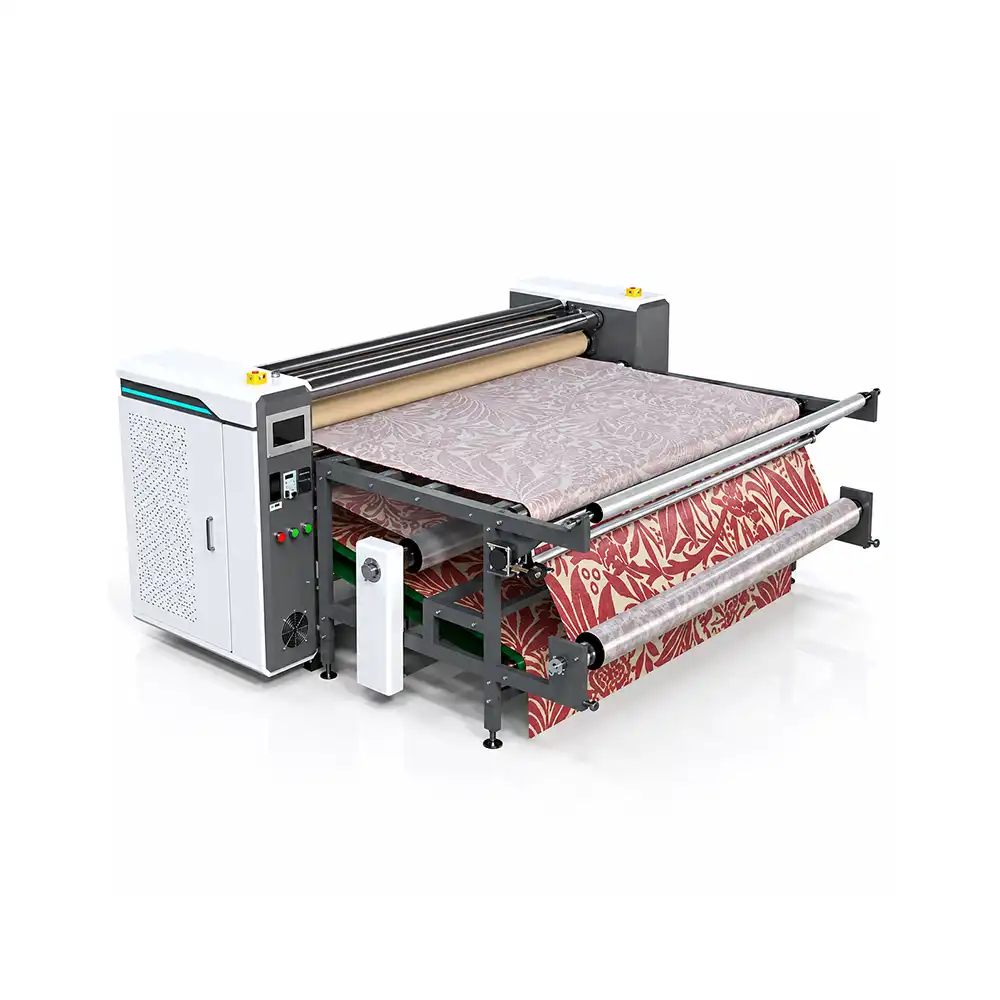

SE-02 High-End Oil-Filled Rotary Heat Press Machine
Drum Diameter: 420–1,200 mm
Working Width: 1.7–3.2 m
Temperature Range: 210–240°C
Applications: Apparel, home textiles, and fabric printing

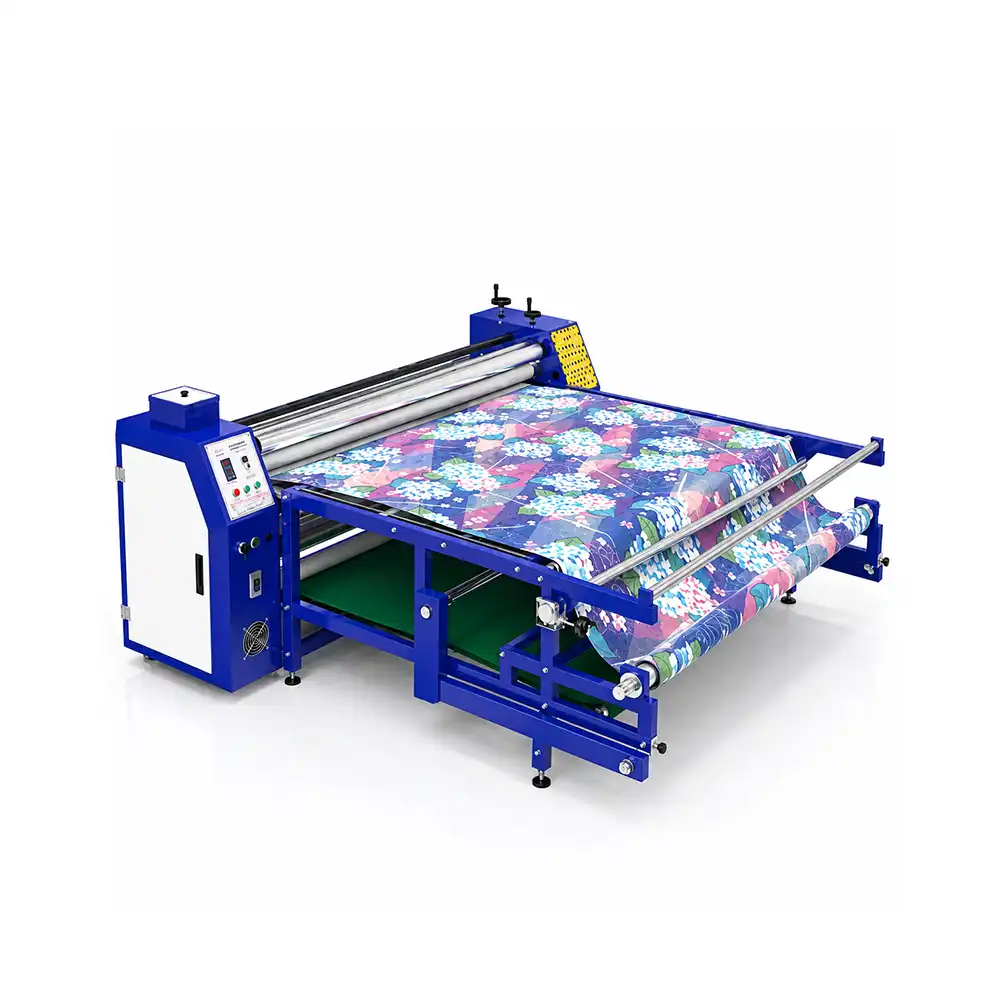

SE-03 Standard Drum Heat Transfer Machine
Drum Diameter: 220–1,200 mm
Working Width: 1.2–3.2 m
Temperature Range: 210–240°C
Applications: Apparel, home textiles, and soft signage

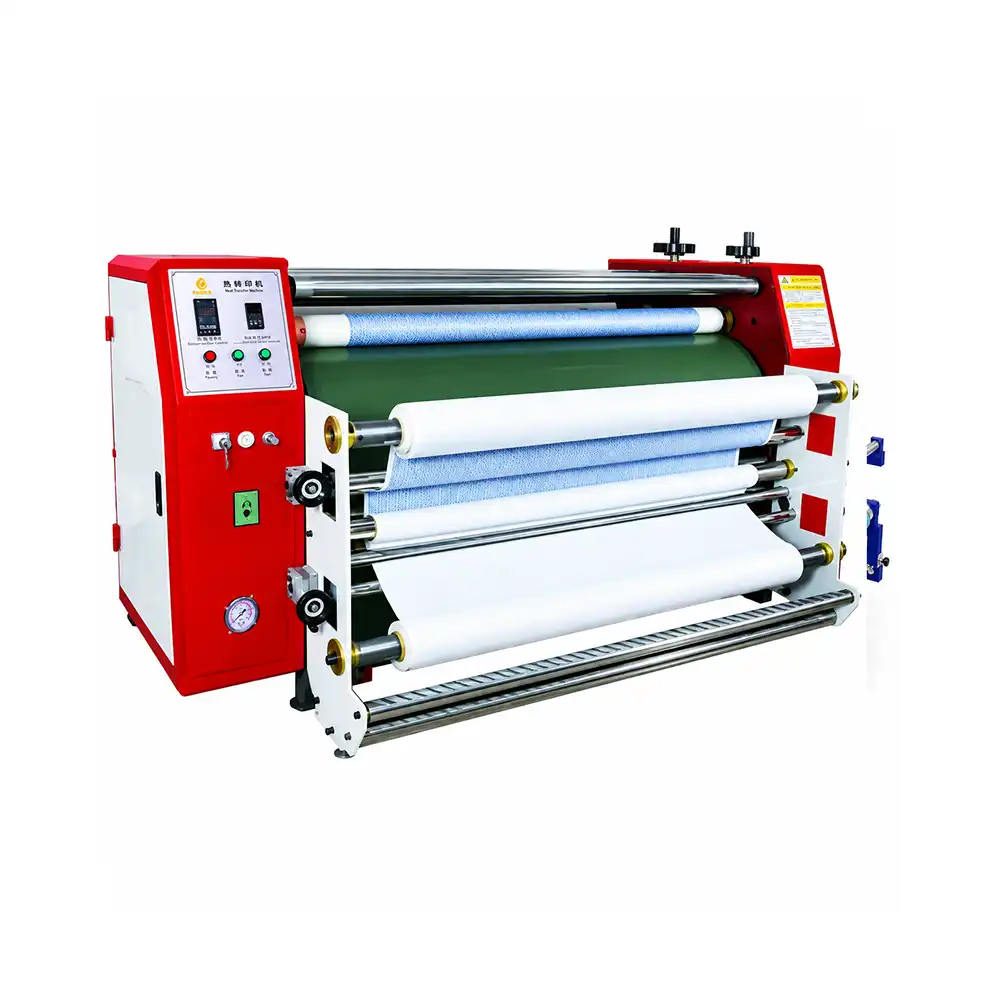

SE-04 Roll-to-Roll Rotary Heat Press Machine
Drum Diameter: 420–1,200 mm
Working Width: 1.7–3.2 m
Temperature Range: 210–240°C
Applications: Curtains, wall coverings, and home textiles

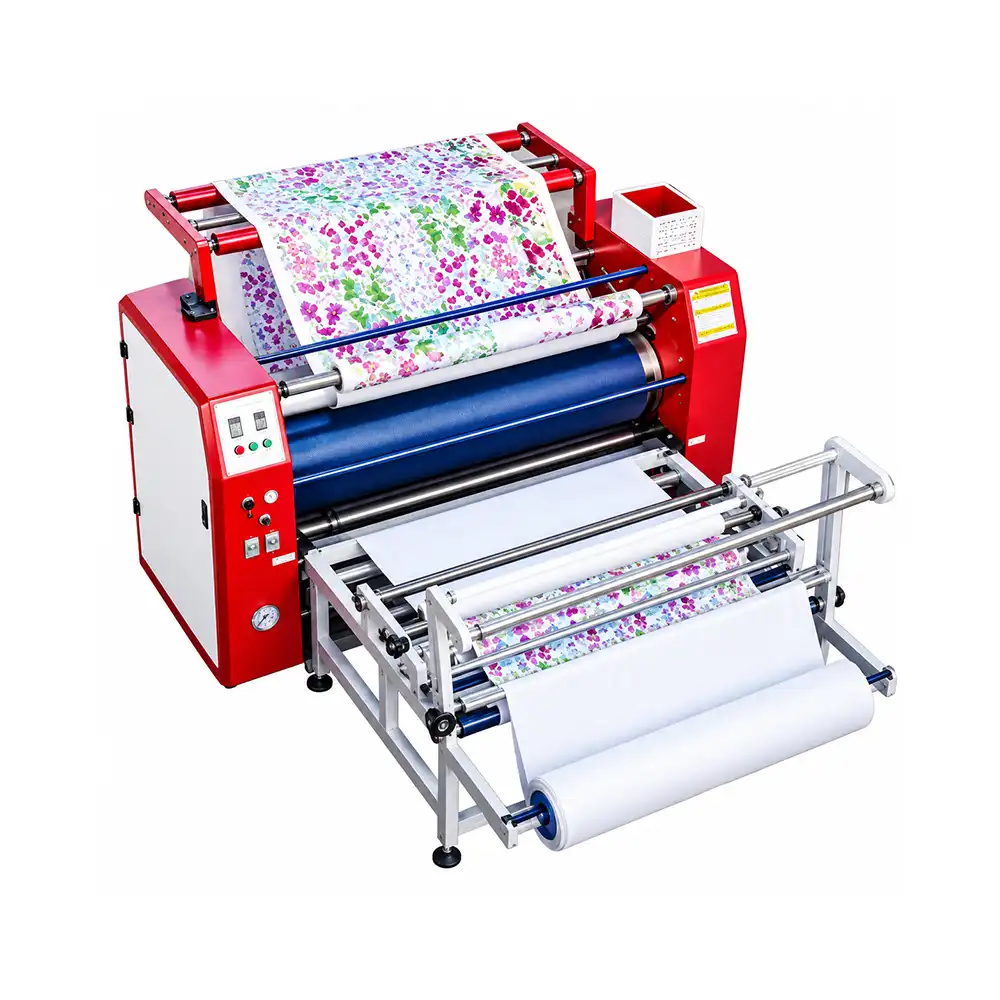

SE-05 Multi-Function Bottom-Feed Rotary Heat Press Machine
Drum Diameter: 420–1,200 mm
Working Width: 1.7–3.2 m
Temperature Range: 210–240°C
Applications: Apparel, home textiles, and fabric printing
Rotary Heat Press Machine Specifications Comparison
| Specifications | SE-01 | SE-02 | SE-03 | SE-04 | SE-05 |
|---|---|---|---|---|---|
| Machine Type | Small PLC | High-End Oil-Filled | Standard Drum | Roll-to-Roll | Bottom-Feed |
| Drum Diameter | 220–320 mm | 420–1200 mm | 220–1200 mm | 420–1200 mm | 420–1200 mm |
| Working Width | 1.2–1.9 m | 1.7–3.2 m | 1.2–3.2 m | 1.7–3.2 m | 1.7–3.2 m |
| Temperature | 210–240°C | ||||
| Working Pressure | 0–8 kg/cm² | ||||
| Warm-up Time | 60–80 min | ||||
| Applications | Apparel, Home Textiles | Apparel, Fabric Printing | Apparel, Soft Signage | Curtains, Wall Coverings | Apparel, Home Textiles |
Rotary Heat Press Machine Applications
Home Textile Printing
Ideal for continuous sublimation heat transfer on polyester bedding, pillowcases, curtains, and decorative fabrics.
Apparel Printing
Ideal for continuous sublimation heat transfer on polyester garments, sportswear, and fashion apparel.
Soft Signage Printing
Designed for continuous sublimation heat transfer on polyester fabric banners, exhibition displays, and advertising textiles
Curtain Printing
Suitable for continuous sublimation heat transfer on polyester curtains and decorative window fabrics.

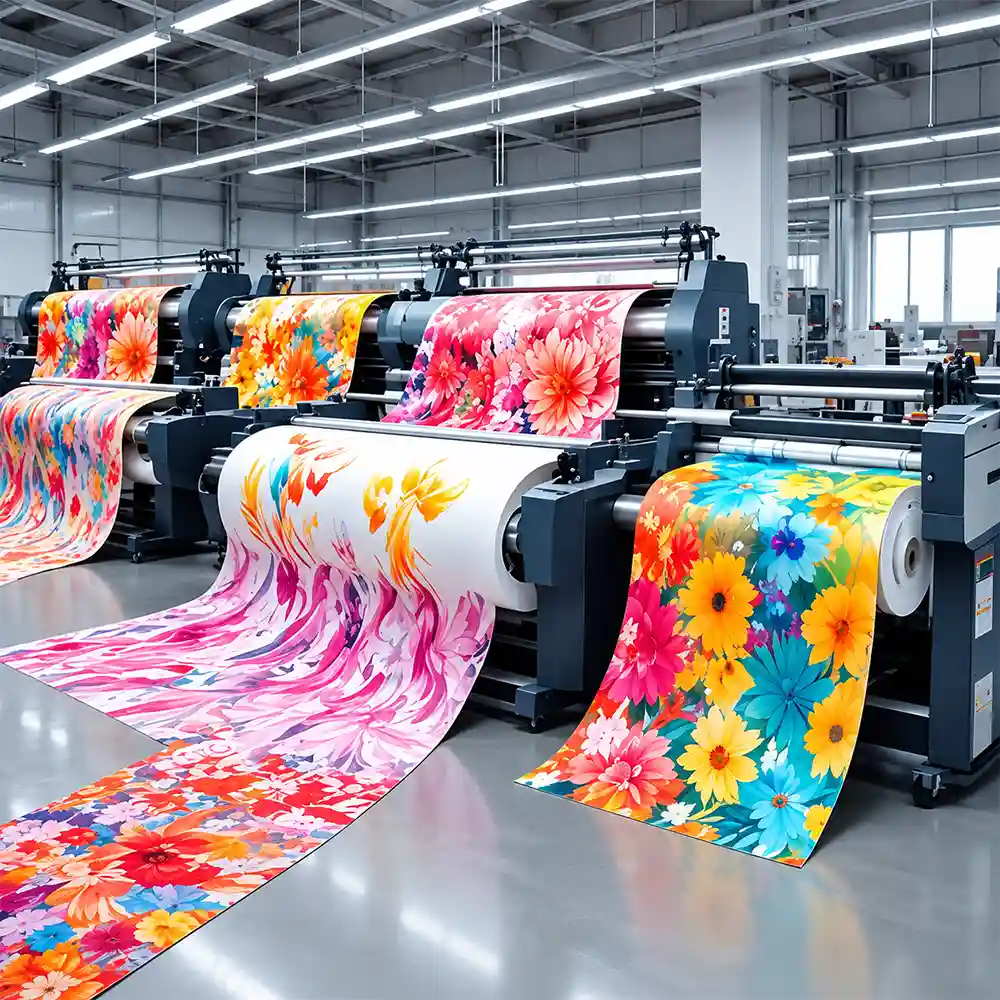

Fabric Roll Printing
Designed for continuous heat transfer on polyester fabric rolls for large-scale textile production.
Decorative Textile Printing
Ideal for sublimation printing on polyester cushion covers, decorative fabrics, and home accessories.
